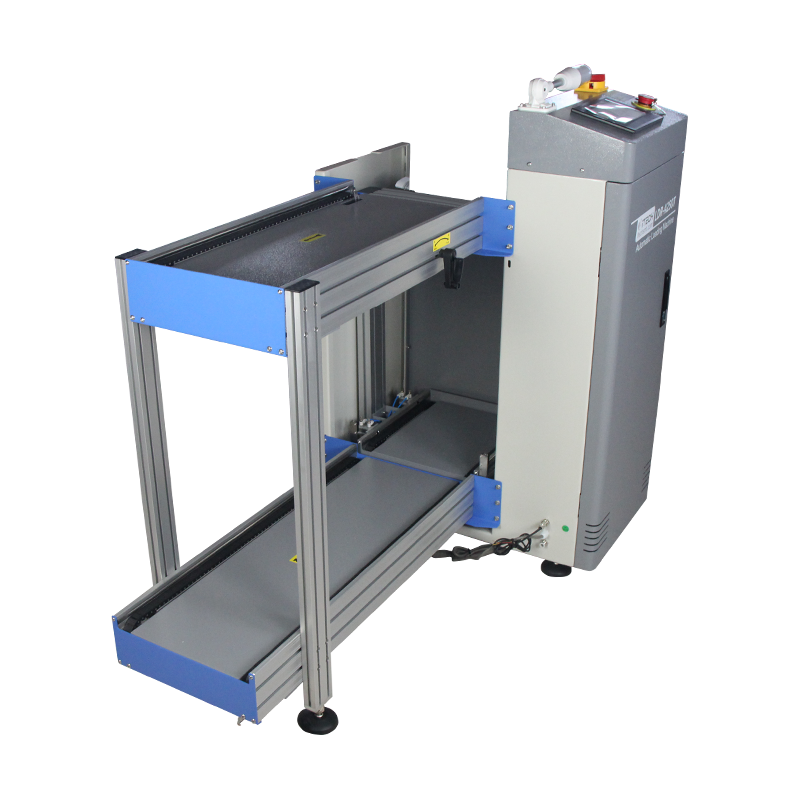

iTECH LDR-A250T Automatic PCB Loader Machine
iTECH LDR-A250T Automatic PCB Loader Machine
Factory
NO.1,Shanha Road Nanming Mountain Street, Liandu District, Li Shui Shi
323000 Zhejiang
China
Factory Wenzhou
6/F, International Chamber of Commerce Building, Renhui Road, Ouhai District Wenzhou
325000 Zhejiang
China

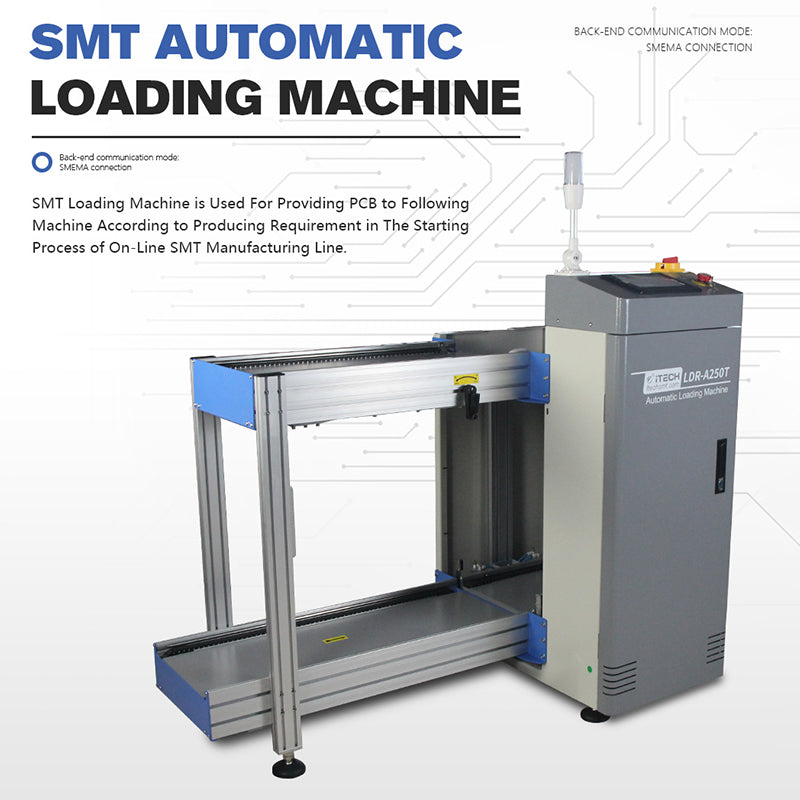

AUTOMATIC PCB MAGAZINE LOADER AND UNLOADER FOR SMT PRODUCTION LINE
As the standard magazine type smt loader or unloader, it owns common needed function that widely applied in the beginning and ending position of a PCB assembly line.
L type can load the PCB in a 90 degree angle, which shorten the length of a SMT line. Moreover, the stacker and compact type is very suitable for massive loading of PCB bare boards, saving lots of loading time and operation costs. By equipped with the special suction feeding structure.
- Concise Style

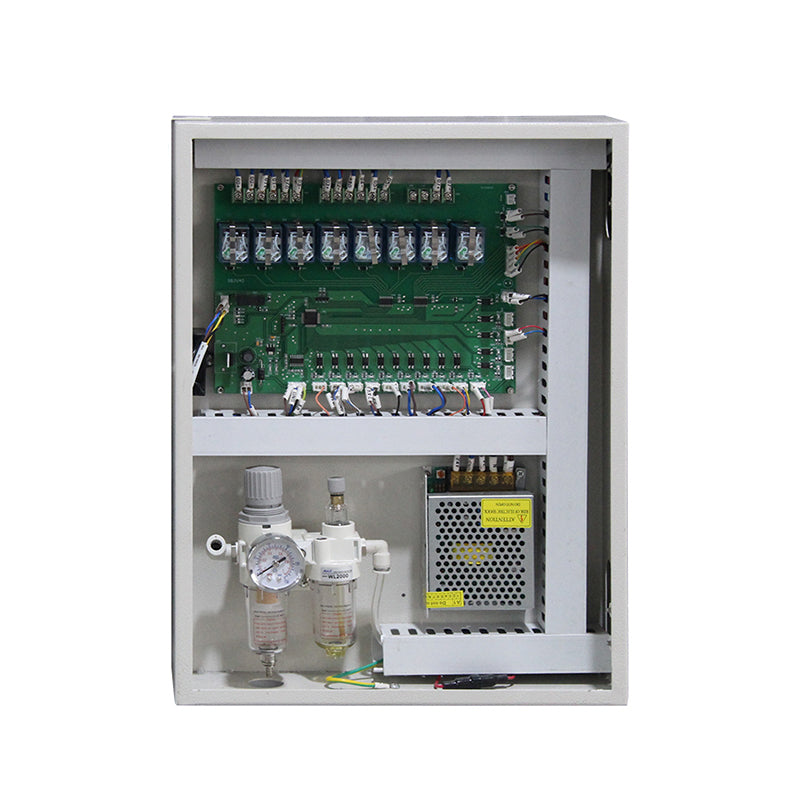

- PLC Control System

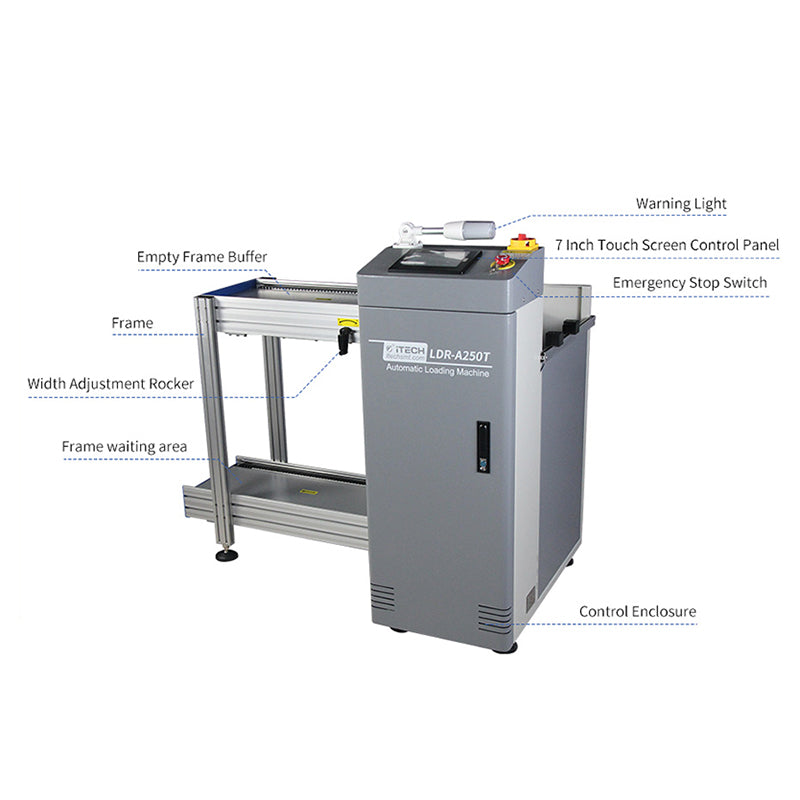

- Friendly “soft touch”LED control panel
- Automatic diagnosing fault and display code function
- The special pneumatic structure design ensures zero PCB breakage
- Top and bottom pneumatic clamps ensure the positioning accuracy of magazine
Model: LDR-A250T
PCB Size: Max. 350*250mm
Conveyor Direction: Left→Right
Rack No.: 3pcs
Rack Size: L355*W320*H565mm
Step Distance of Loading: 10, 20, 30, 40
Conveyor Height: 900±20mm
Conveyor Speed: 0.16m/s
Voltage: AC 220V, 50Hz
Power: 200W
Air Pressure: 0.6Mpa
Net Weight: 150kgs
Gross Weight: 212kgs
Machine Size: L1340×W790×H1200mm
Package Dimension: 1540*900*1220mm
