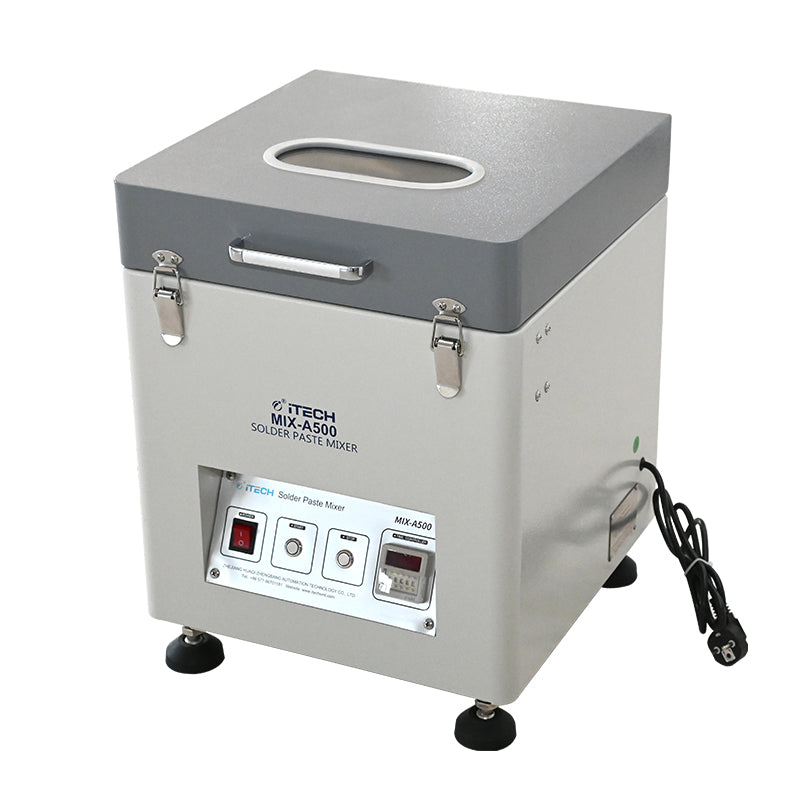

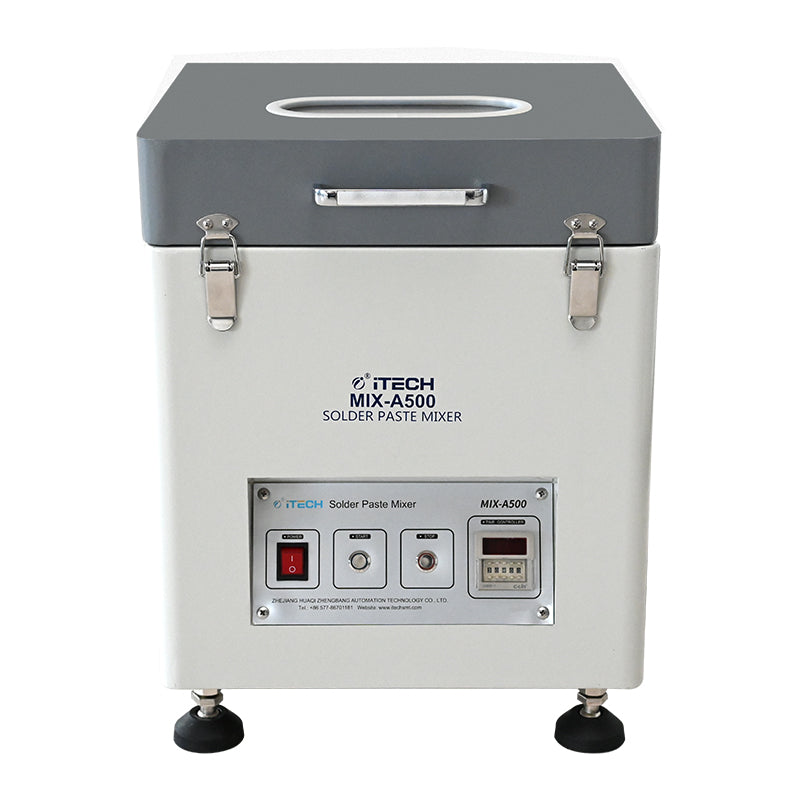

iTECH MIX-A500 Automatic High Speed SMT Solder Paste Mixer
iTECH MIX-A500 Automatic High Speed SMT Solder Paste Mixer
220V-EU Plug
Factory
NO.1,Shanha Road Nanming Mountain Street, Liandu District, Li Shui Shi
323000 Zhejiang
China
Factory Wenzhou
6/F, International Chamber of Commerce Building, Renhui Road, Ouhai District Wenzhou
325000 Zhejiang
China

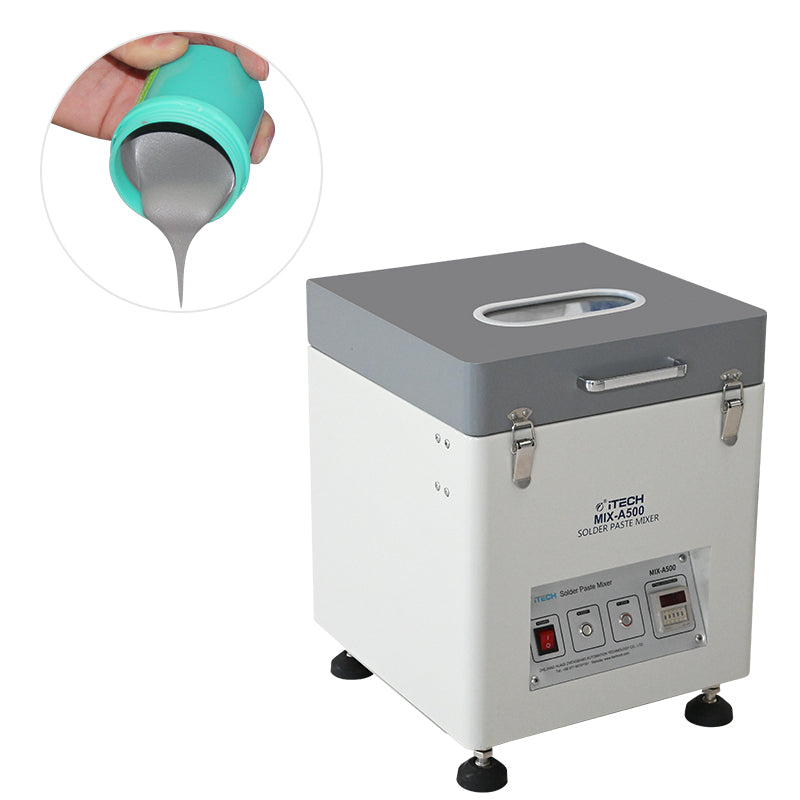

HANDFREE PCB SOLDER PASTE MIXING MACHINE
It prodvides powerful solder paste mixing capacity. Eliminates inconsistent hand mixing and reduces mixing time. Easy o operate. Anyone can prepare the well-mixed solder paste to simplify the printing process in the SMT line.
Automatic paste mixer for preparing solder paste for application to the pads of printed circuit boards with dual rotation technology. Solder cream is placed by 45 degrees and rotates along axis direction and solder cream won't stick to the pot cover.
- Design in understated style

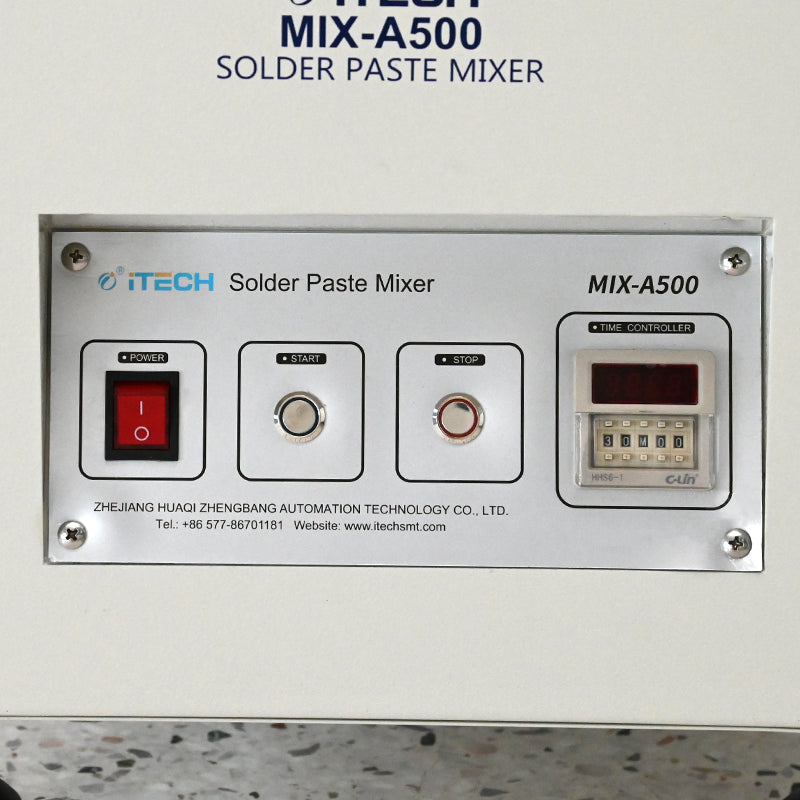

- Minimalistic control panel

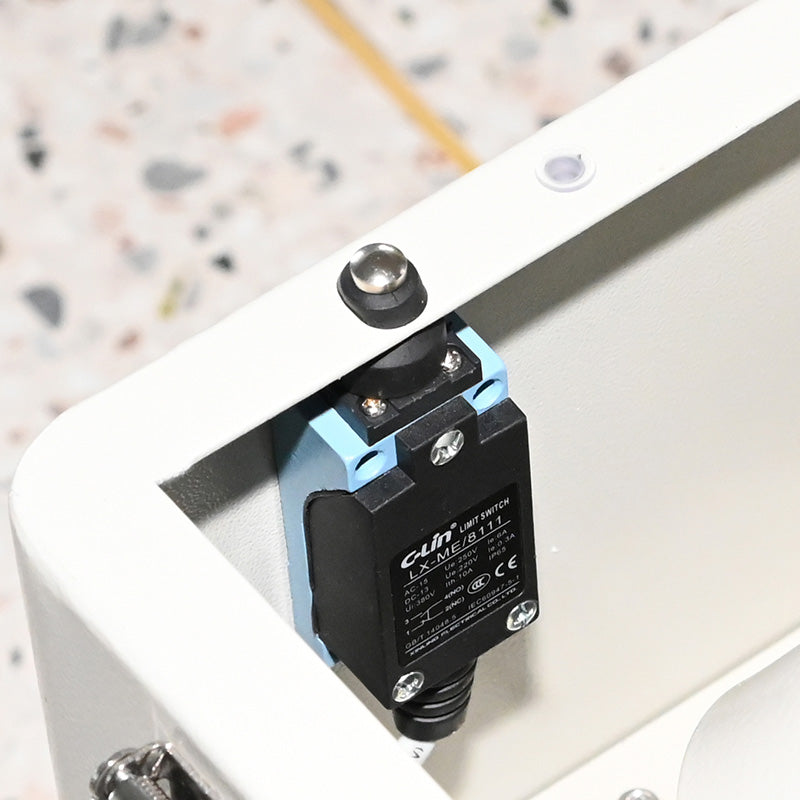

- Safty lock protection

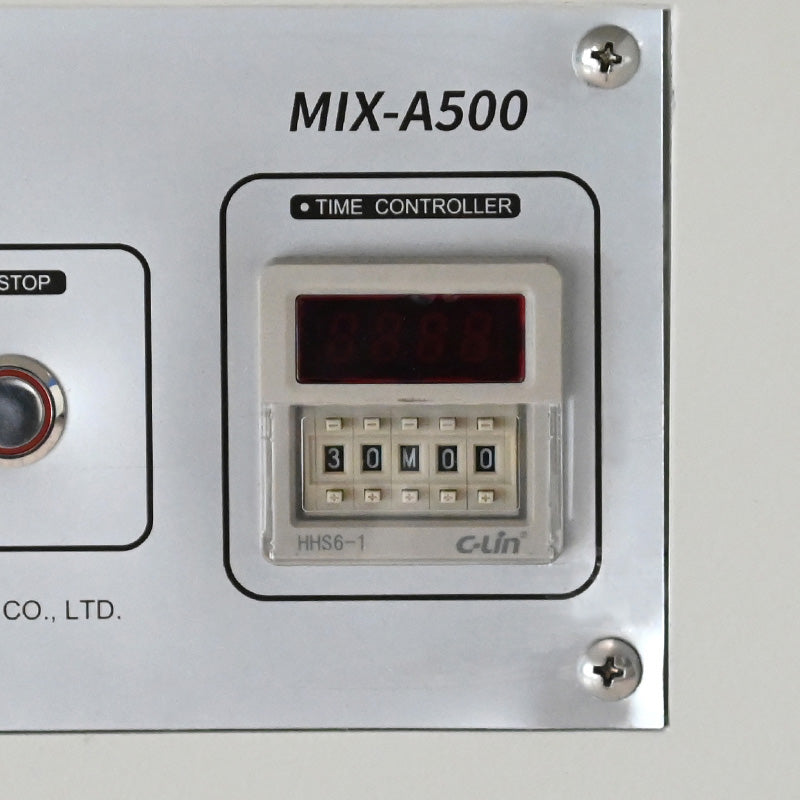

- Digital time controller
- Mixing time adjustable
- Stable running with low noise
- Temperature return naturally and bubble remove in the process of mixing
- No need to open cover for solder cream pot and it is convenient and safe for pick and place.
- Support OEM for your jars
For more details, pls check the Specification and Brochure
WANT CHEAPER PRICE??? PLEASE CONTACT US (rose@itechsmt. com) TO CHECK CHEAP SHIPPING COST DDP TO YOUR DOOR, FREE TAX.
Model: MIX-A500
Speed: Motor speed:1350RPM, Revolution:400RPM, Rotation:300RPM
Capacity: Max.500g*2tanks
Application: Tank diameter Φ60-Φ67 (Solder Paste 500g/tank) (OEM available)
Time Setting: 0.01S-99H99S
Display Mode: LED Digital Display
Power: 60W
Voltage: AC 220V+10% 50Hz
Net Weight: 45kgs
Gross Weight: 60kgs
Machine Size: 400*400*500mm
Package Dimension: 540*540*590mm
BLOG
Do I have to use Solder Paste Mixer?
Solder Paste Mixer helps to condition the temperature and viscosity of solder paste. It helps to increase productivity and quality on SMT printing process.
