iTECH PPM-A320VB SMT Pick and Place Machine Chip Mounter
iTECH PPM-A320VB SMT Pick and Place Machine Chip Mounter
Without Vibratory Feeder / PPM-A320VB Without Cover / 220V-EU Plug
Factory
NO.1,Shanha Road Nanming Mountain Street, Liandu District, Li Shui Shi
323000 Zhejiang
China
Factory Wenzhou
6/F, International Chamber of Commerce Building, Renhui Road, Ouhai District Wenzhou
325000 Zhejiang
China
HIGH SPEED MINI DESKTOP PICK AND PLACE MACHINE FOR PCB ASSEMBLY LINE
High Precision small pick and place machine helps you with your SMT component placement needs. Electronic designers and engineers across the globe use the machine for various electronics assembly. It is a proven workhorse at small startups, big labs and universities.
Unlike the other desktop pick and place machines from some suppliers, PPM-A320VB comes with reel feeder. You don't have to pay more for the expensive feeders. In addition to reel feeders, the PCB pick and place machine can handle tube-packaged components with vibratory feeder(for option, in the compensatory basis). This is low cost smt pick and place machine, loved by electronics enthusiasts.
- Vision system - upwards and downwards cameras
- High precision mounting performance
- Dual mounting heads 360°rotation
- Built-in PC, remote support
- Stepper servo motor
- Double mark point recognition
- Linear guide, more stable
- Pneumatic pin and wider belt, more durable
- 54pcs reel feeders
- IC tray support
- Vibratory feeder for option
For more details, pls check the Specification and Brochure
WANT CHEAPER PRICE??? PLEASE CONTACT US (rose@itechsmt. com) TO CHECK CHEAP SHIPPING COST DDP TO YOUR DOOR, FREE TAX.
Model: PPM-A320VB
Mounting Numbers: 2PCS
Mounting Precision: 0.025mm
Mounting Angle: 0～360°
Mounting Speed: 5500pcs/hour
Suction Nozzle Type: Juki Series Nozzle
Applicable Element:
RC (0402, 0603, 0805, 1206 etc)
LED Lamp Beads (0603, 0805, 3014, 5050 etc)
Chip (SOT, SOP, QFN, BGA etc)
SMD Height: ≤5.5mm (Customize ≤11mm)
PCB Minimal Size: 10×10mm
PCB Maximum Size: 320×450mm
PCB Thickness: ≤2mm
Components Reel Type: 8mm, 12mm, 16mm, 24mm
Front IC Location: 10pcs
Back IC Tray: 1pc
Vibration Stick Feeder: iTECH Customized Feeder (Optional)
X/Y Axis Moving Range: 430×530mm
Z Axis Moving Range: 10mm
Z Axis Rotation Angle: 0～360°
Visual Camera: CCD High-definition Camera
Numbers of Visual: Parts Camera×3, PCB Camera×1
Recognition Capability: MAX. 22×22mm
PC System: Microsoft WIN7
Operational Software: R & D
Compatible File Format: CSV. TXT. Format
Program Method: Support Online and Offline Ways
Air Pressure: 0.4Mpa
Vacuity Degree: -66kpa
Power: 230W
Voltage: AC220V±10％ 50Hz
Net Weight: 85kgs
Gross Weight: 114kgs
Machine body Size: L990×W730×H375mm
1#Materials Feeder Outline Size: L235×W700×H245mm
2#Materials Feeder Outline Size: L235×W485×H245mm
Package Dimension: 1340*840*590mm
Customer Reviews
todo llegó muy bien gracias aún no se realizan pruebas pero todo llegó super empacado muchas gracias
I would really love your desktop machine however I only make small batches of PCBs, the setup I have works for me at the moment.
Good Quality and Great Service

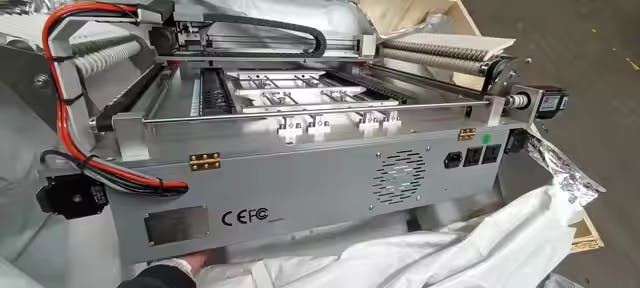

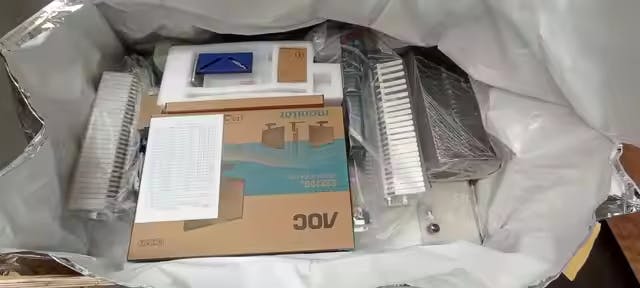

I`m very satisfied with the pcb machine. Great unit - very well packed for sea transport. Also there is spare parts.
Спасибо очень качественней продук
Customer Reviews
buy it with
TAKE A CLOSER LOOK
STEP SERVO MOTOR
The closed-loop control system of position, velocity and torque perfectly solve the out of step problem which caused by the stepper motor. Eventually achieved high precision positioning and mooth low speed operation requirements.
FEEDER SYSTEM
Independent R&D pneumatic feeding system. The film collecting mechanism is similar to the feeding feeder on the imported machine, and the film is collected in a wheel type, which is not easy to jam and is convenient to change.
PNEUMATIC PULLING NEEDLE
With Built-in Air Comperssor. The pulling pin is driven by pneumatic, It is not prone to be getting stuck due to long-term use.
TAIWAN HIWIN LINEAR RAILS
Movements along the axes are guided by Taiwan HIWIN high precision linear rails, ensuring the accuracy and repeatability each pick and place
WIDER TRANSMISSION BELT
Adopts 15mm width Japan UNITTA transmission belt. More durable. The stable belt is not easy to deform and stretch, ensuring the machine with high precision mounting
BUILT-IN INDUSTRIAL PC
Equipped with one full set of built-in industrial PC, Monitor, Keyboard and Mouse. Use the PNP machine freely just plug in the power.
The build-in PC achieve the possibility of remote control service.
USER FRIENDLY SOFTWARE
Our Self-developed Pick and Place Software is friendly for starter. The intuitive, step-by-step user interface will guide you through the entire process.
MOUNTING EFFECT
Give You Accurate Mounting at High Speed.
