10.5M Electronic Assembly Line with Independent Workbench

HQZB Assembly Line

10.5M Electronic Assembly Line with Independent Workbench

Sale price$3,050.00
Style:Standard
Quantity:
Pickup available at Factory Usually ready in 2-4 days

10.5M Electronic Assembly Line with Independent Workbench

Standard

Factory

Pickup available, usually ready in 2-4 days

NO.1,Shanha Road Nanming Mountain Street, Liandu District, Li Shui Shi
323000 Zhejiang
China

Factory Wenzhou

Pickup currently unavailable

6/F, International Chamber of Commerce Building, Renhui Road, Ouhai District Wenzhou
325000 Zhejiang
China

LED Light Assembly Line For Production



Assembly line incorporates individual workbenches or workstations that operate independently from one another. Each workbench could be dedicated to a specific task or process within the overall assembly process.

In such a setup, workers at each workbench may perform their assigned tasks separately and autonomously, with components or workpieces moving from one workbench to another as they progress through the assembly line. This kind of arrangement could enable simultaneous operations, division of labor, and specialization at different stages of the production process.

This kind of assembly line involve dividing the production process into smaller units or cells, each with its own dedicated equipment, workstations, or workbenches, allowing for greater flexibility and efficiency.

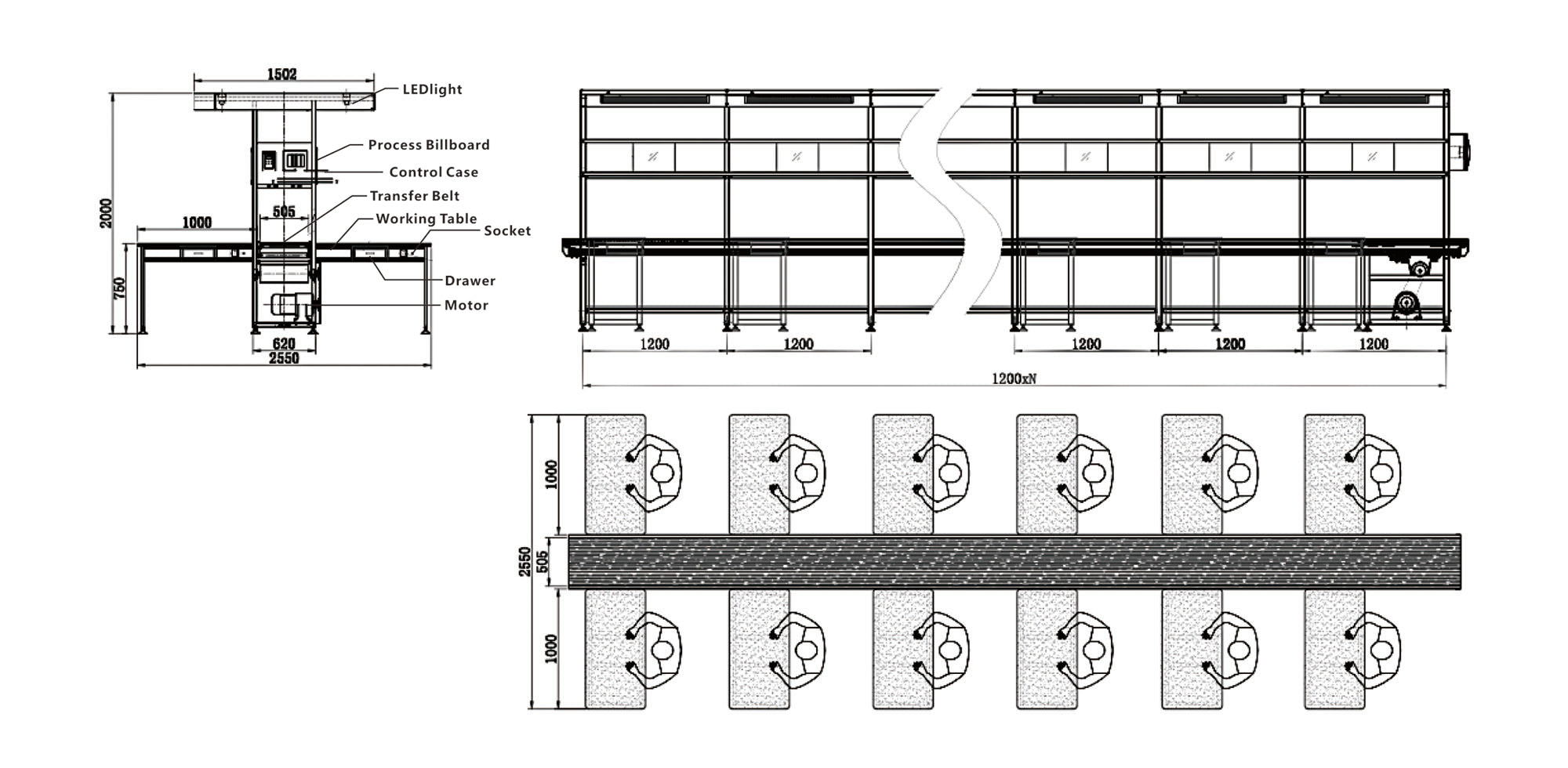

Specification:


Standard Model:

Size: L1050cm*W255cm*H200cm
Table Size: L100cm*W50cm*H75cm
Drive System: Adjustable Motor 220V/750W, ADLEE Inverter
Speed: 1-6 meters/minute Adjustable
Main Frame: 30*40mm Steel Pipe, Surface Phosphating, High Temperature Painting
Main body: 23*130mm Aluminum
Lighting System: 0.9m 12W T8 LED light, Subsection control
Working Table: 500*18mm Particle Board with 2mm anti-static Leather and Aluminum Alloy wrapped
Conveyor: Green Anti-static PVC belt(500*2mm)
1 unit /1.5 meter, 2 stations/1 unit, total 14 stations



High Version Model:

Each table with one drawer and baffle
Visor: Surface Phosphating, High Temperature Painting, Navy Blue Color
