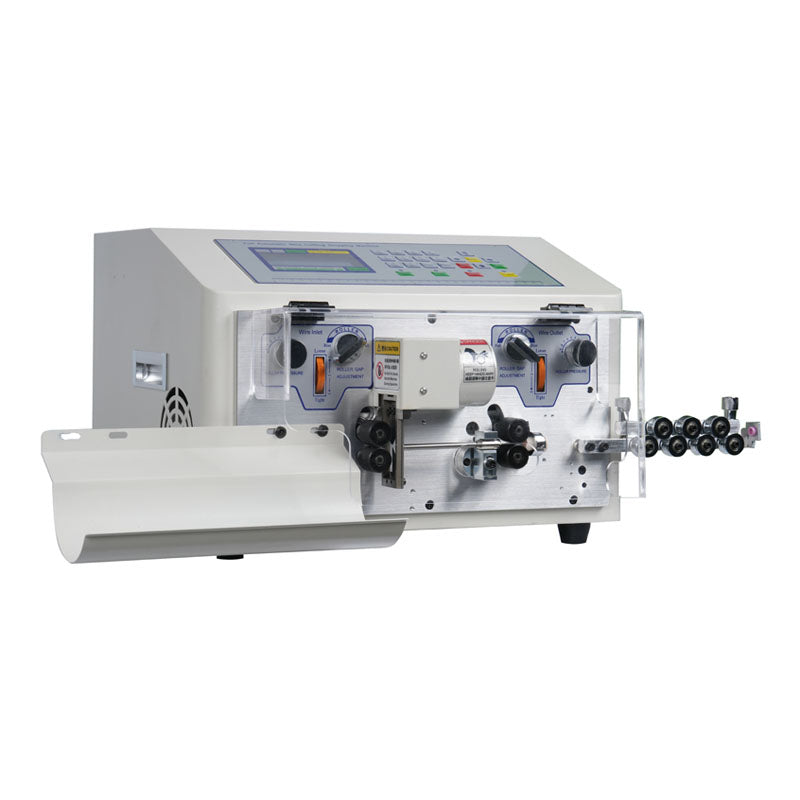

Wire Stripping Machine

Wire Stripping Machine for cutting, head-stripping, middle-stripping and tail-stripping of single -strand and multi-strand wire

Automatic Wire Stripping Machine is a wire processing equipment used for cutting, stripping, segmenting and other operations. It is widely used in electronics, electrical appliances, automotive wiring harnesses, communications and other industries. It can automate the processing of wires, greatly improving production efficiency and processing accuracy.

• Heavy-Duty Construction: Constructed from solid aluminum alloy, this wire stripper can withstand rigorous environments and easily endure years of heavy use. Equipped with high hardness blades to ensure its operational stability.
• Wide Compatibility: The scrap wire stripping machine comes with 0-99 programs for every stripping need. Can meet any wire assemble needs with various cutting style and programmable length. Simple operation and stable performance, providing fast speed and high accuracy.
• High Stripping Efficiency: 100 mm, 4000-5000 pcs/h. Cutting the Line Core Cross-Section: 0.1-4 mm², Cutting Length: 1 - 9999 mm. Stripped Length: Thread 0-15mm, line end 0-15 mm. The gearbox leads to fast stripping speed. Hard tungsten steel blade  plus the laborsaving design increases security and convenience.

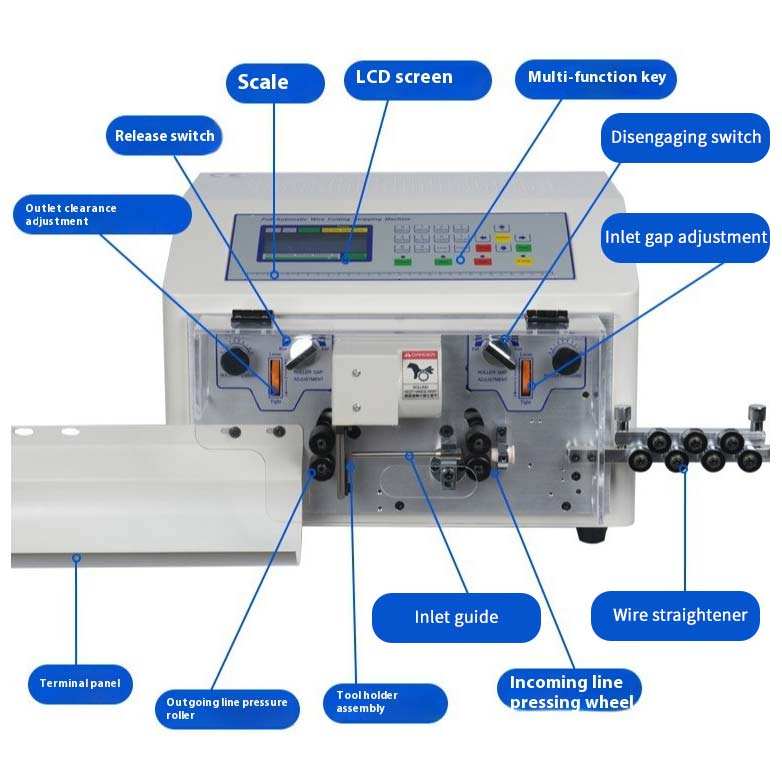

• User-Friendly Control: With a microcomputer-controlled clean designed mechanism, this electric wire stripping machine cuts, peels and strips wire automatically. The direct and easy-to-use interface allows inexperienced users to operate it easily.
• Extensive Use: This machine is ideal for whatever hard wire or soft wire, it can be easily stripped by using this model. Such copper wire recycler will detach the plastic and rubber insulation from undamaged scrap wire, a must-have for copper wire recycling.
• Inner core stripping (for option, in the compensatory basis)

Power Supply: AC 220V,50Hz
Model: ZB508-SD

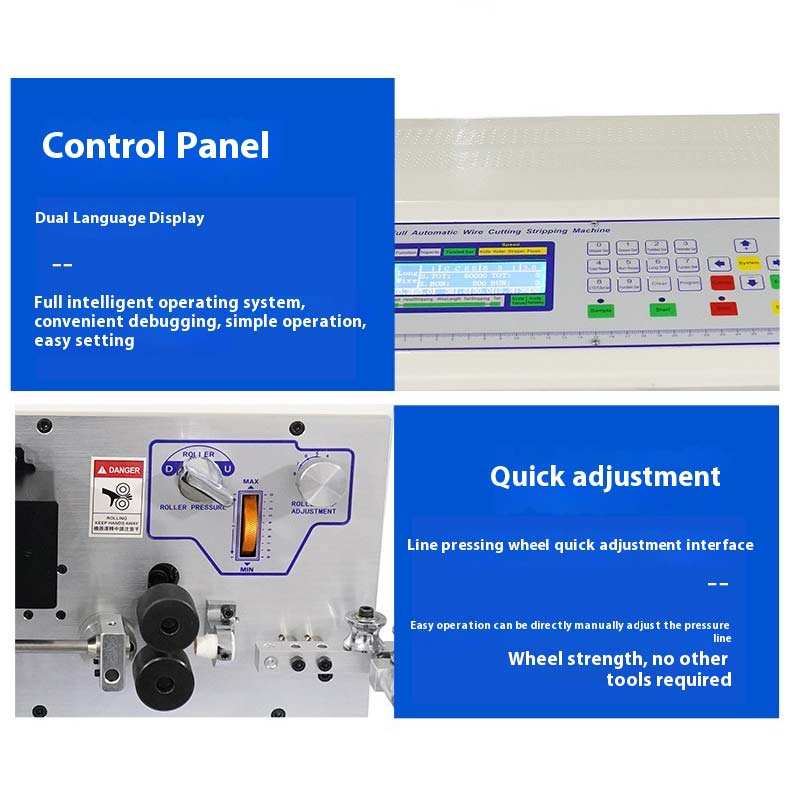

Display: In English LCD Interface
Power: 200 W
Cutting Length: 1-9999 mm
Cutting Tolerance: ± (0.002 x L) mm
Stripped Length: Thread 0-15mm, Line End 0-15mm
Line Core Cross-Section: 0.1-4 mm²
Max. Catheter Diameter: ¢ 6
Appropriate Stripping Wire: PVC / Teflon / Silicone Cable / Wire Glass Fiber

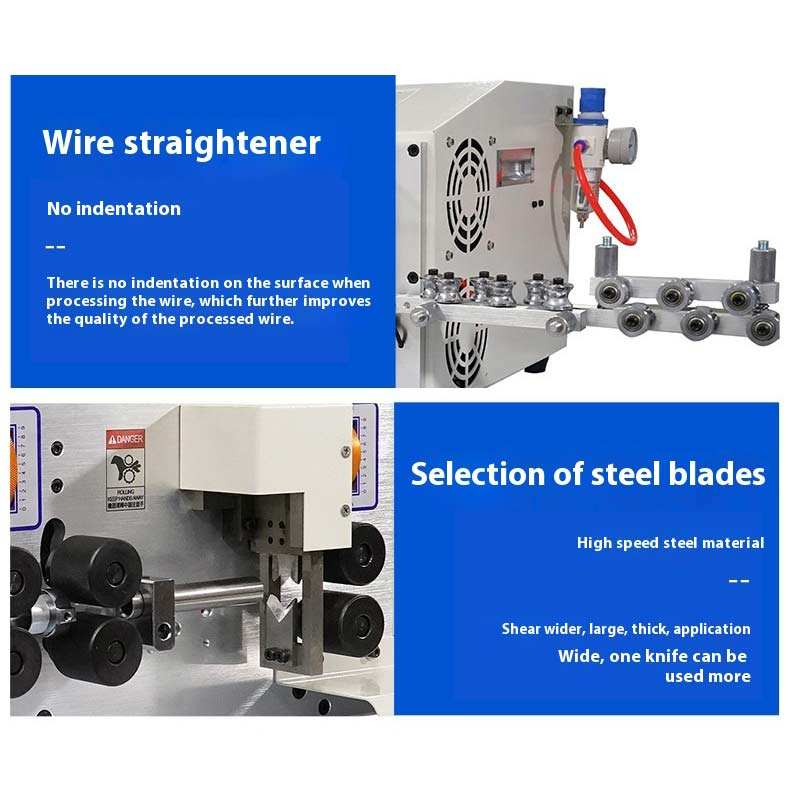

Blade Material: Hard Tungsten Steel
Stripping Speed: L = 100 mm/h, 4000-5000 pcs/h
Drive Mode: Four-Wheel Drive
Machine Size: 54*35*25cm
Net Weight: 25kgs
Gross Weight: 30kgs
Packing Dimension: 54*51*40cm
