iTECH PTR-A300 High Precision Solder Paste Printer for PCB Line
iTECH PTR-A300 High Precision Solder Paste Printer for PCB Line
PTR-A300
Factory
NO.1,Shanha Road Nanming Mountain Street, Liandu District, Li Shui Shi
323000 Zhejiang
China
Factory Wenzhou
6/F, International Chamber of Commerce Building, Renhui Road, Ouhai District Wenzhou
325000 Zhejiang
China
FLEX SMT SCREEN PCB STENCIL PRINTER
One of the most important parts of the surface mount assembly process is the application of solder paste to the printed circuit board (PCB). The aim of this process is to accurately deposit the correct amount onto each of the pads to be soldered. This is achieved by screen-printing the solder paste through a stencil.
It is very useful for small batches, using very economical board-size laser cut stainless steel stencils. The tool gives excellent registration and repeatability without a complex set-up.
- Flexible positioning
- Precision fine-turning
- High quality Aluminum plate base
- Rod height adjustable
- Application: solder paste or red glue printing
- Use for single or double-side PCB
- With scraper and spatula
- Easy to operate
For more details, pls check the Specification and Brochure.
WANT CHEAPER PRICE??? PLEASE CONTACT US (rose@itechsmt. com) TO CHECK CHEAP SHIPPING COST DDP TO YOUR DOOR, FREE TAX.
Model: PTR-A300
Max. Printing size: 250*400mm
Work table size: 300*400mm
Max. net frame size: 370*470mm
Thickness of the substrates: 0-80mm
Printer way: Manual
The workbench adjust volume: 10mm, Horizontal and vertical adjustment
Printing platform height: 220mm
Repeated accuracy: ±0.01mm
Locate mode: Benchmark hole or shape
Net Weight: 21kgs
Gross Weight: 22kgs
Machine Size: 540*370*380mm
Package Dimension: 620*450*225mm
Model: PTR-A400(DZ)
Max. Printing size: 350*500mm

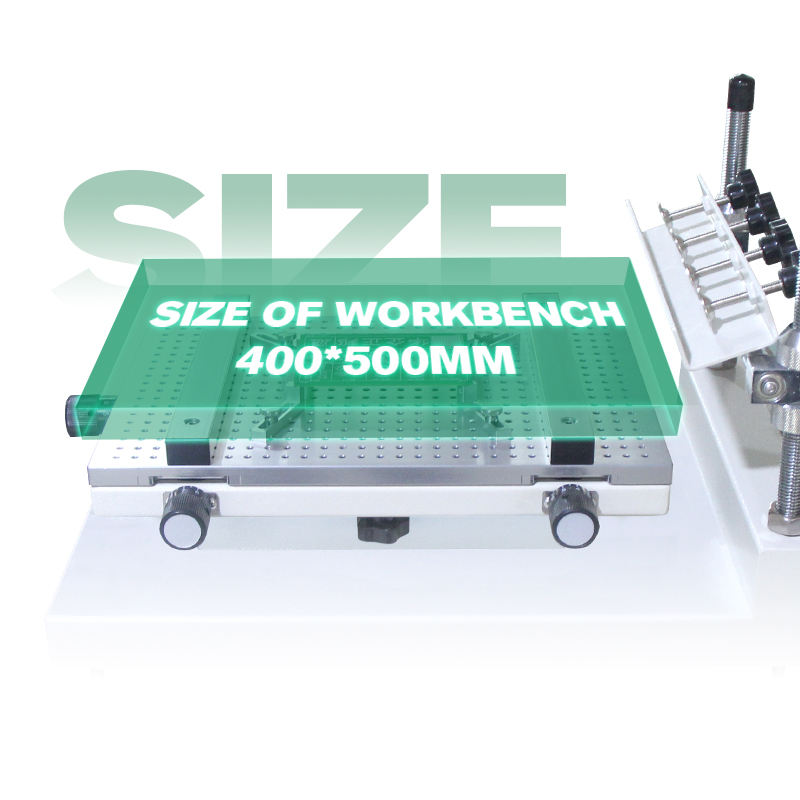

Work table size: 400*500mm
