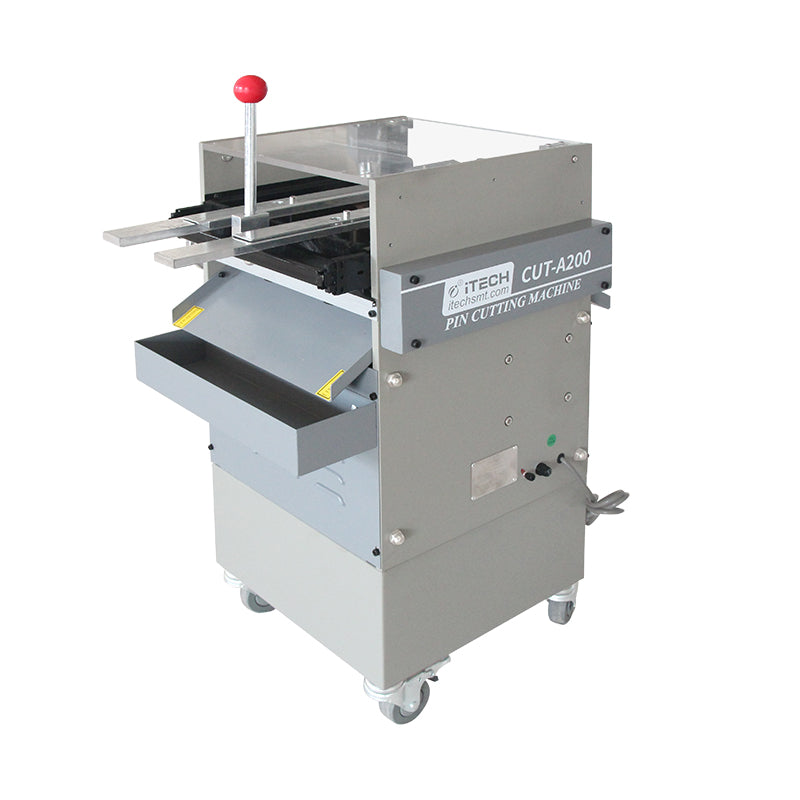

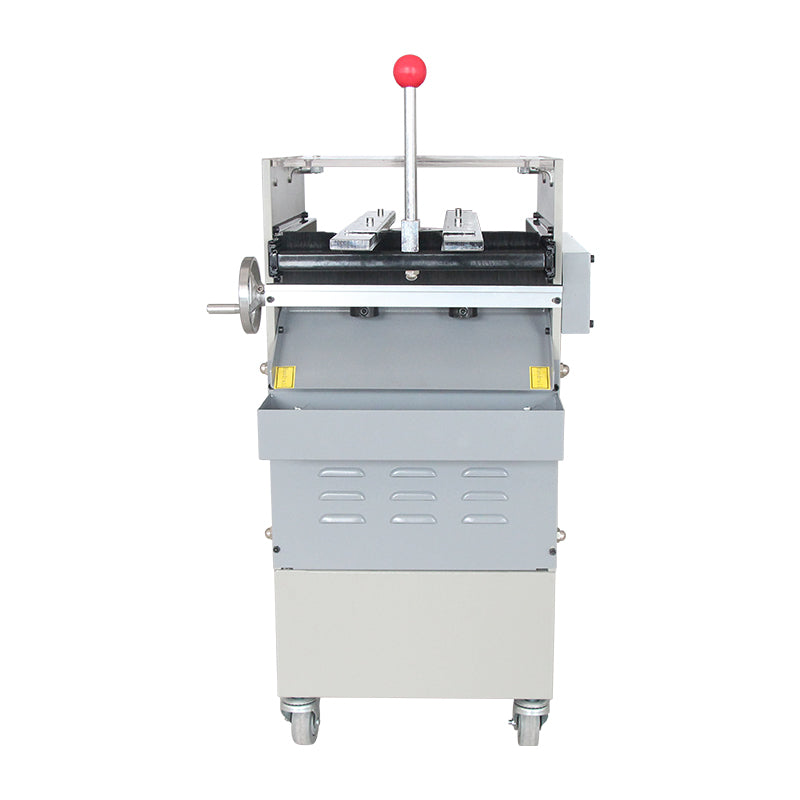

iTECH CUT-A200 Semi Automatic PCB Lead Cutting Machine
iTECH CUT-A200 Semi Automatic PCB Lead Cutting Machine
CUT-A200
Factory
NO.1,Shanha Road Nanming Mountain Street, Liandu District, Li Shui Shi
323000 Zhejiang
China
Factory Wenzhou
6/F, International Chamber of Commerce Building, Renhui Road, Ouhai District Wenzhou
325000 Zhejiang
China
PCB LEAD WIRE CUTTING MACHINE LEAD STRIP CUTTER

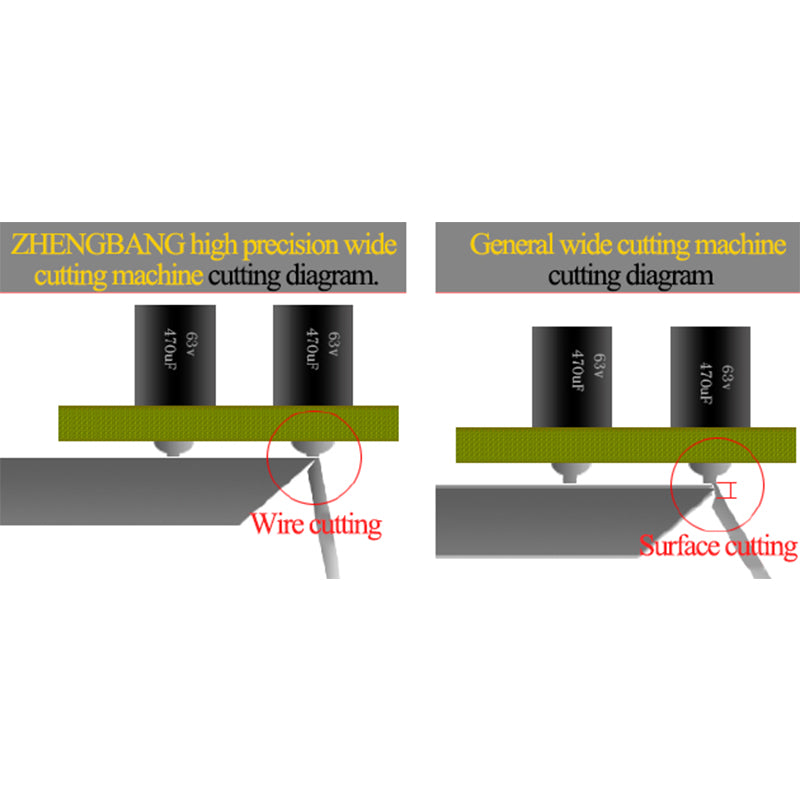

PCB lead cutter is designed to trim the wire leads off PCB assembly after soldering process. The capacitor lead cutting machine is manufactured with utmost precision and most developed cutting edge technology to meet with industry laid down standards.
- High precision bearing
- High cutting performance for wire cutting
- Sturdy structure, low shake and low noise
- Three holes blade gland technology to ensure it running stable
- Several kinds of Tungsten Carbide Blade for option
- Double Stainless Steel Lead Rails, more durable
- Height of wire cutting adjustable
- Easy to operate
Pls kindly be noted that the standard machine without blade.

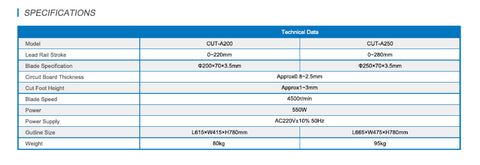

Model: CUT-A200
Voltage: AC 220V, 50Hz
Power: 550W
Liner rail size: 0-220mm
Blade size: Dia.200*70*3.5mm
PCB thickness: Approx 0.8-2.5mm
Wire lead: Approx 1-3mm
Blade speed: 4500 RPM
Net Weight: 76kgs
Gross Weight: 85kgs
Machine Size: L615×W435×H780mm
Package Dimension: 700*540*836mm
Model: CUT-A250
Voltage: AC 220V, 50Hz
Power: 550W
Liner rail size: 0-280mm
Blade size: Dia.250*70*3.5mm
PCB thickness: Approx 0.8-2.5mm
Wire lead: Approx 1-3mm
Blade speed: 4500 RPM
Net Weight: 85kgs
Gross Weight: 104kgs
Machine Size: L615×W435×H780mm
Package Dimension: 750*610*840mm
